JBL 305P MkII Powered Studio Monitor (Open Box)

This product is presented based on information provided by the manufacturer and official sellers. The JBL 305P MkII is a 5-inch powered studio monitor designed for professional audio production environments. It features JBL's patented Image Control Waveguide for precise sound imaging, a bi-amplified design with dual 41W Class-D amps, and advanced EQ controls for acoustic optimization. With a frequency response of 49Hz–20kHz and high output capacity, it suits various mixing and playback needs.

Please note that all specifications, compatibility, and performance details are based on manufacturer data. For complete accuracy or warranty information, we recommend consulting the official JBL website or contacting the manufacturer directly.

1. Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
2. Next-generation JBL transducers for optimized transient response and improved linearity
3. Patented Slip Stream low-frequency port for superior bass performance at all playback levels
4. Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
5. New Boundary EQ settings compensate for low frequency variants introduced by the environment
6. HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

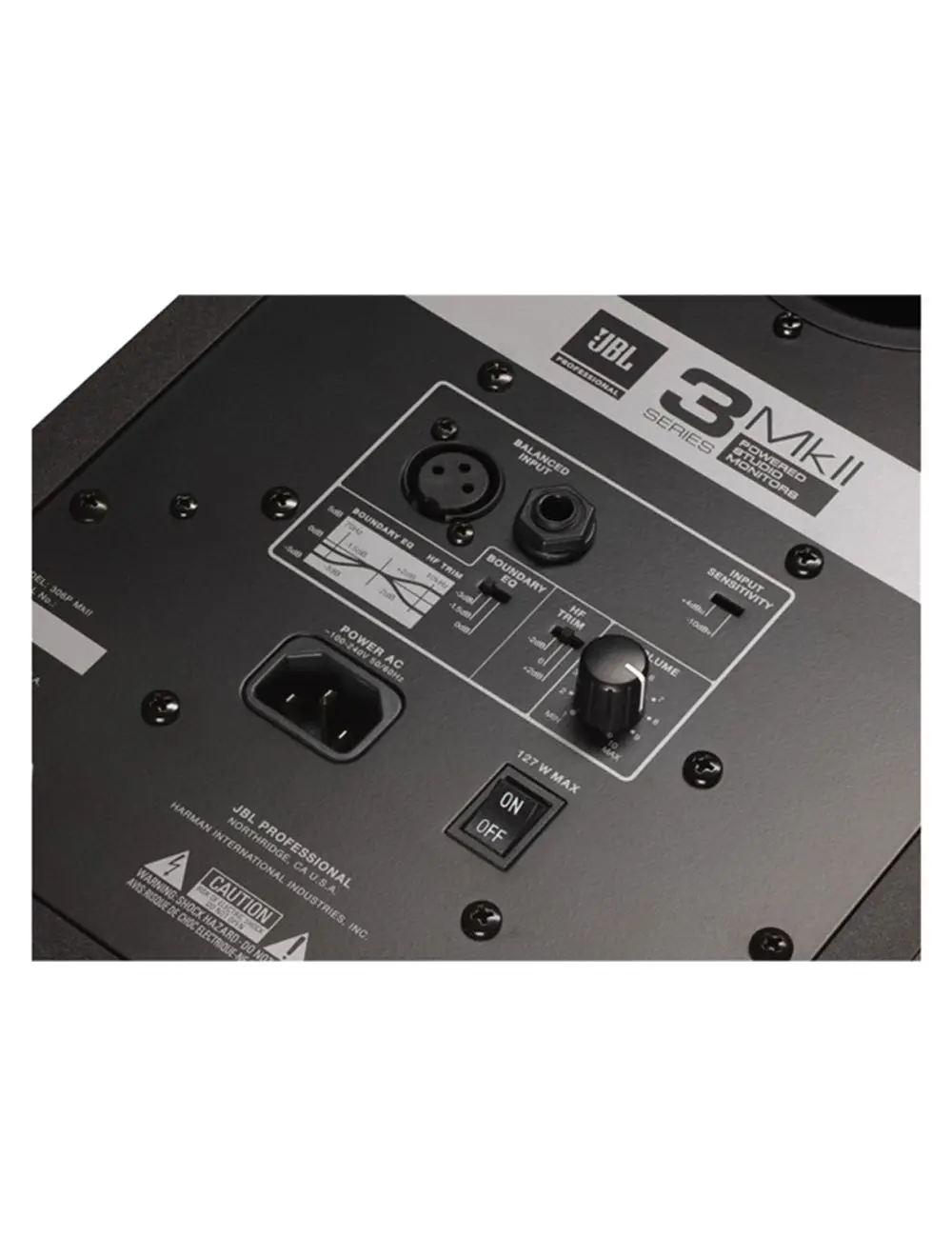

7. Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
8. Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
9. Strenuous JBL 100-hour full-power test ensures years of reliability
10. Sleek, modern design provides a visual upgrade to any studio
11. Lf Driver Size : 203mm (5")
12. Hf Driver Size : 25mm (1")
13. Hf Driver Type : Soft dome
14. Crossover : 1725Hz 4th order acoustic Linkwitz-Riley
15. Ok For Use Near Magnetically Sensitive Equipment : Yes
16. Input Sensitivity : (-10dBV INPUT) : 92dB / 1m
17. Power Configuration : Bi-amplified
18. Hf Driver Power Amp : 41W, Class-D
19. Lf Driver Power Amp : 41W, Class-D
20. Frequency Response (±3dB) : 49Hz – 20kHz
21. Frequency Range (-10dB) : 43Hz – 24kHz
22. Low Frequency Extension (-10dB) : 43Hz
23. Maximum Continuous Spl : 94dB
24. Maximum Peak Spl : 108dB
25. Maximum Peak Input Level (-10dBV / +4dBu) : +6dBV / +20.3dBu
26. System Distortion Criteria : <10% THD at maximum output with full compressor / limiter engagement
27. Electrical Distortion Criteria : 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
28. Signal To Noise Ratio : 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
29. Coverage Horizontal x Vertical : 120° x 90°
30. Analog Input Types : 1 x XLR female, 1 x TRS female, balanced
31. Hf Trim Control : -2dB, 0dB, +2dB
32. Boundary Eq : LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
33. Ac Input Voltage : 100 – 240VAC (±10%), 50 / 60Hz
34. Enclosure Type : Ported
35. Enclosure Construction : 15mm MDF
36. Enclosure Finish : Matte black PVC
37. Baffle Construction : Injection-molded structural ABS
38. Cabinet Dimensions (H x W x D) : 298 x 185 x 231mm (11.7" x 7.3" x 9.1")
39. Display Carton (H x W x D) : 354 x 244 x 299mm (13.9" x 9.6" x 11.8")
40. Shipping Carton (H x W x D) : 373 x 260 x 315mm (14.7" x 10.2" x 12.4")
